Enmane-1U 25 Ports Dustproof Telephone Patch Panel

    2020-09-05 Views: Source:Enmane Group

Universal interface/ Well-formed/Integrated design

Tmall
Tmall purchase

Details are introduced

Enmane 1U 25 Ports Dustproof Telephone Patch Panel

Universal interface/ Well-formed/Integrated design

Telecommunication engineering level, 2 cores 4 cores telephone patch panel

1U25 口电话语音配线架


Integrated design: Use integrated thicken steel plate and cable management,Reliable and durable
Big capacity:1U25 Ports,big capacity with multi ports,suitable for large-scale transmission
IDC Terminal Base:Stable connection,excellent transmission
Ferrule:High sensitive and Wide contact
Housing material:Anti-tust and baking varnish for a long-lasting, rust resistant finish
Detachable cover:Special dustproof cover,dustproof and rust resistant,keep the line sequence clear
Line sequence:Easy and clear, meet international common standard
Cabinet:19" cabinet/ Rack

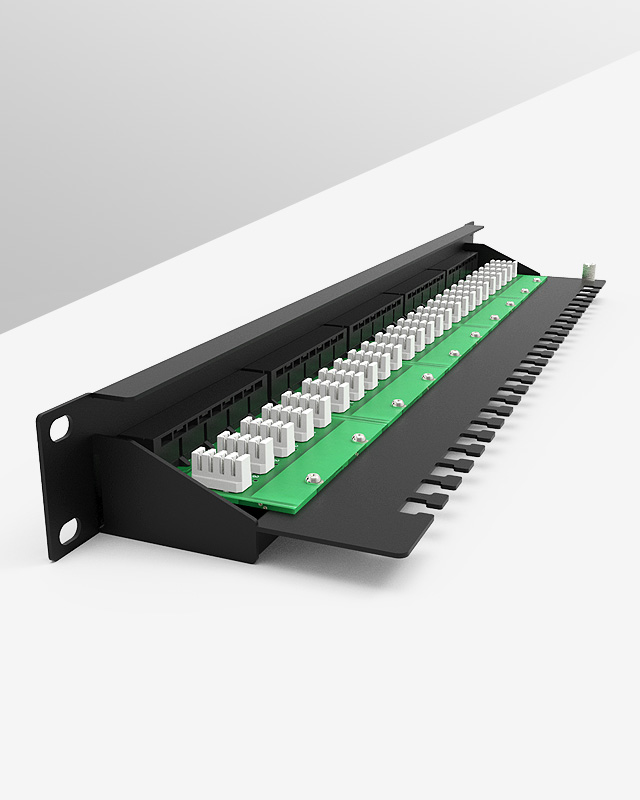

Integrated design

Thicken the steel plate, and then add the wire coil. Integrated design, RJ45 / RJ11 crystal head is universal

1U25 口电话语音配线架

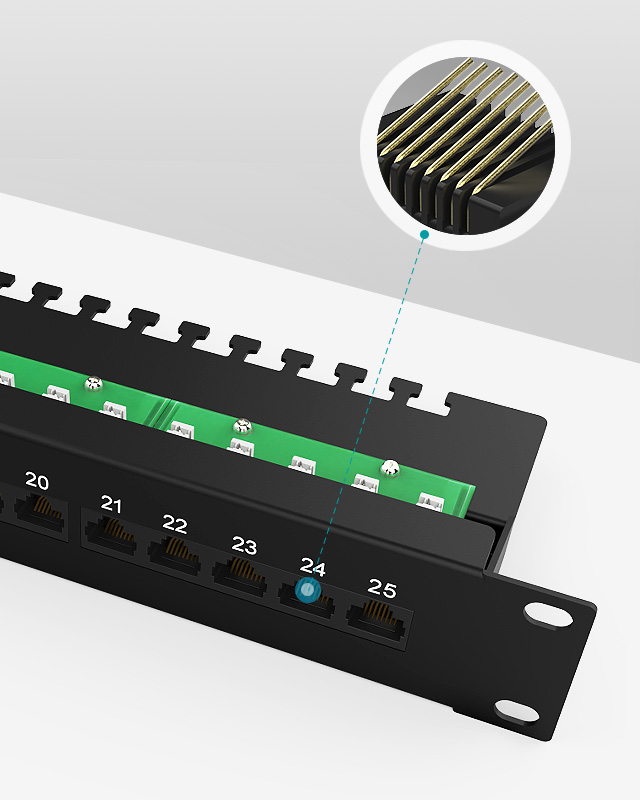

Ferrule--- High sensitive and Wide contact

Full copper with 25 gold plating make more stable contact

1U25 口电话语音配线架


High performance PCB Board

Special balance design,reduce interference,accurate and high speed data transmission

1U25 口电话语音配线架

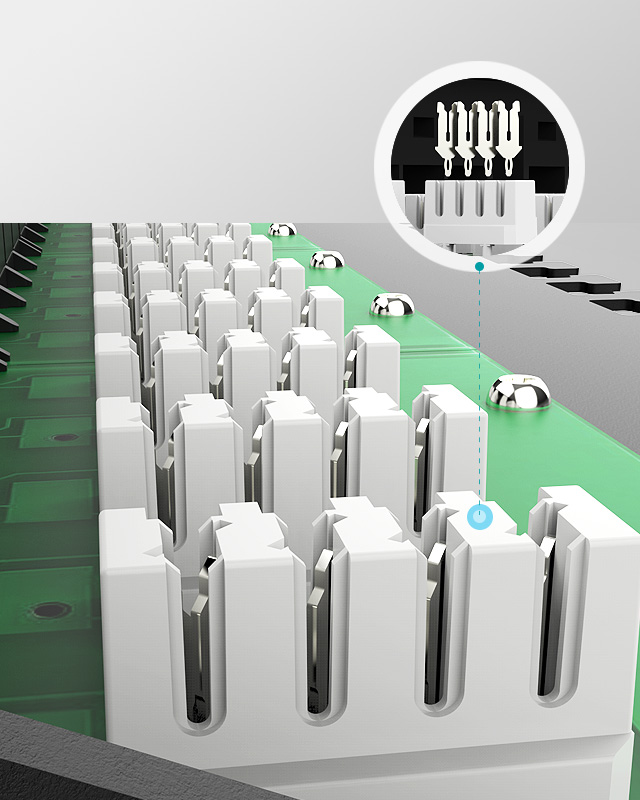

IDC Terminal Base- Stable connection,excellent transmission

Phosphor bronze wire clamp ensure the excellent transmission

1U25 口电话语音配线架

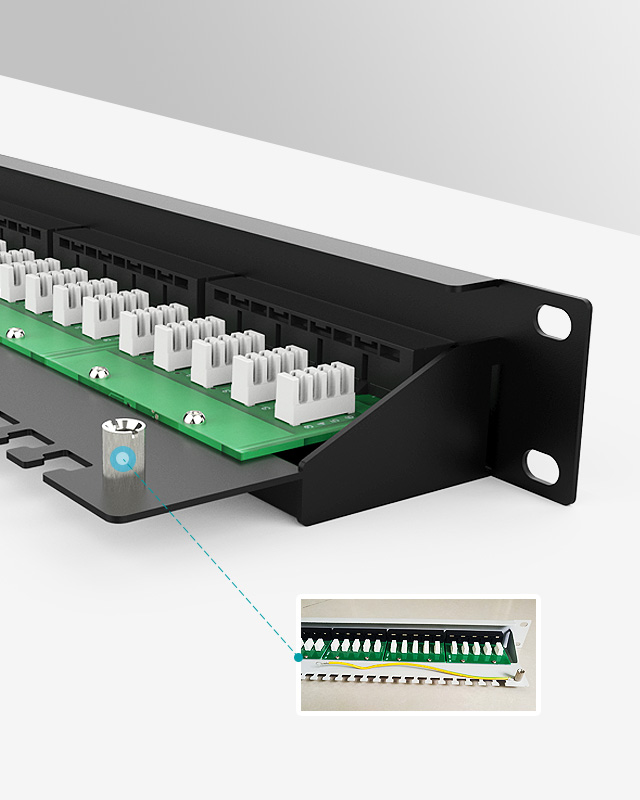

Earth wire cable available

Reduces EMI/RFI interference,ensure the stable signal transmission.

1U25 口电话语音配线架


Wire Bonding

90-degree termination,4cores or 2 cores cable are all available,meet variety of cabling requirements.

1U25 口电话语音配线架



Technical parameters


Brand:ENMANE
Manufacturer:Enmane Group
Model:PUT25 1
Type:Patch panel
Connector:RJ45
Port: 25 Ports
Specification:1U 19''

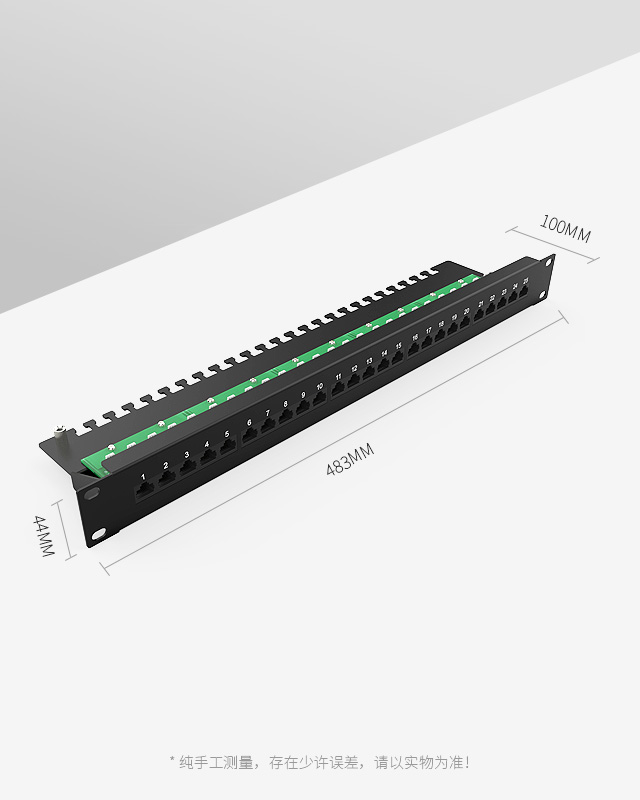

Dimension:483mm*117mm*44mm (The dimension is only for reference)
Color:Black/Grey/Customized
Material:Cold-rolled steel+ABS
Certification:FLUKE/3P Certificate
Wire Gauge:22-26WAG
Application:Compatible with any standard RJ45 sockets,Enmane's patch panels, surface boxes, or wall plates (face plates)
Applicable place:Industry/Data center/Office/Buildings/ Vessel/Space/House
Certification:DELTA/ROHS/REACH
Warranty Period: 12 months


免打1U25 口电话语音配线架
